Bio pellet briquettes wood coal


Benefits burner:
-
High efficiency 90.53%
-
Possibility of burning pellets and bio pellets (straw, hay, sawdust ...)
-
Easy installation
-
Minimum maintenance
-
Ability to control power
-
Highly organic combustion
-
Auto ashes

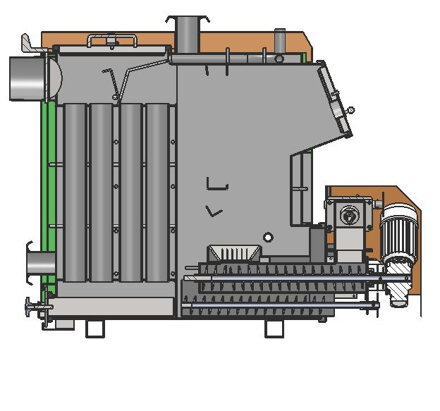

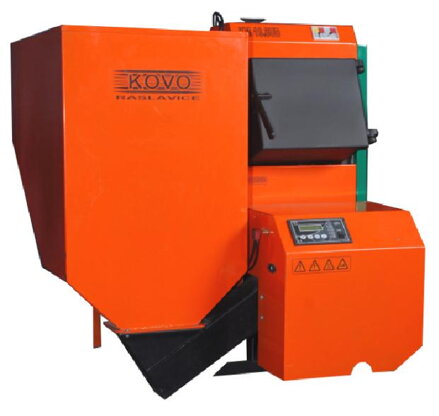

The burner is designed for a perfect and fully automatic firing wood pellets and bio. The very operation of the burner is fully automatic. Using the auger is withdrawn from the reservoir pellets, is located on the left side of the boiler. Burner and tank are one unit that plugs into the bottom door of the boiler, which guarantees a simple installation. Ease of use contributes to transparent and easy to use control unit with LCD display, with extra links for room thermostat, as well as automatic popolňovanie from the burner.
The results of measurements of hot water boiler "KM-19, 8 PMK" at rated power.
Fuel |
Peletky |
Fuel efficiency |
16420[kJ/kg] |
Fuel consumption |
4,38[kg/h] |
Average output |
20[kW] |
The average efficiency based on fuel efficiency |
90,53[%] |
Avg. O2 concentration |
15,52[%] |
Avg. CO2 concentration |
5,04[%] |
Avg. CO concentration calculated at 10% O2, t = 0 ° C, p = 1013 mbar |
583[mg.m-3] |
Avg. NOx concentration calculated at 10% O2, t = 0 ° C, p = 1013 mbar |
272[mg.m-3] |
Avg. OGC concentration calculated at 10% O2, t = 0 ° C, p = 1013 mbar |
29[mg.m-3] |
Avg. dust concentration in flue gas calculated at t = 0 ° C, p = 1013 mbar |
38[mg.m-3] |
Average temperature of flue |
174[°C] |
Average chimney draft |
18[Pa] |
