wood briquettes coal
The boiler can be easily connected pellet burner.

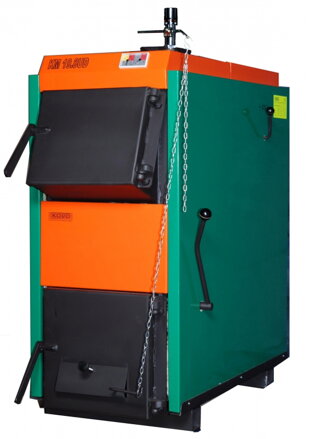

Boiler robust construction is designed to burn wood logs and briquettes and coal. Enables high-volume combustion chamber to burn wood to a length of 37 cm with small requirements for chimney draft. Automatic combustion control dampers with high quality is a guarantee of organic combustion. The boiler requires minimal maintenance to adding to the very good self-cleaning effect. Solid cast iron grates and boiler body made of high-grade steel with a thickness of 4 mm ensures long life and up to 25 years in compliance with operating conditions.
Technical parameters of the boiler
|
Nominal power boiler |
20KW |
|
Heating surface |
2,4 m2 |
|
Minimum force |
79,33 % |
|
Maximum working pressure / max. hydrostatic height / |
0,3 MPa |
|
Chimney draft |
22 Pa |
|
Diameter flue throat |
145mm |
|
Brightness output throat Js |
65 mm |
|
Brightness return pipe Js |
65 mm |
|
Width x depth x height of the boiler |
451x973x1150mm |
|
The volume of water |
70 l |
